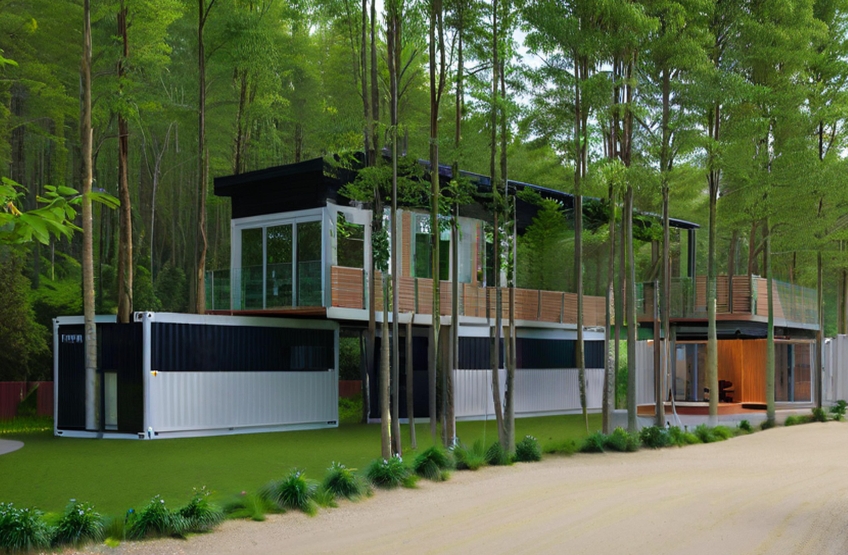

PREFAB MOBILE HOUSE WITH EXPANDABLE AND FOLDABLE STRUCTURE

I. Core Structure and Technical Characteristics

• Modular expansion design

Splicing expansion: through standardized interfaces (such as bolts or snaps) to realize the combination of multiple light steel keel units,

a single box can be expanded to a double-decker or multi-room structure, adapting to the needs of the family, office and so on.

Folding box: Adopting hydraulic rod or slide system, the volume is reduced to 1/3 of the original size after folding,

and a complete living space is formed after unfolding (e.g. 18-25 square meters after unfolding a 20-foot container).

• Application of lightweight materials

Main frame: hot-dip galvanized light steel keel (thickness 1.2-2.0mm), both high strength and corrosion resistance (life expectancy ≥ 50 years).

Enclosure structure: outer color steel plate (thickness 0.4-0.6mm) or aluminum composite plate, inner composite calcium silicate plate,

filled with rock wool (density ≥80kg/m³) to achieve thermal insulation.

II. Key Functions and Performance Advantages

• Rapid construction and flexibility

The prefabrication rate of the factory reaches 90%, and only assembly is required on site, shortening the construction cycle of 200㎡ house to 2-3 months.

Adaptable to complex terrain (e.g. mountains, wetlands), fixed by ground bolts or counterweight blocks, no need to dig deep foundations.

• Disaster Resistance and Durability

Seismic resistance up to grade 9, wind resistance grade ≥12, suitable for seismic zone or coastal typhoon area.

The joints are sealed with EPDM rubber + polyurethane waterproof adhesive to prevent water seepage and cold bridge effect.

III. Typical Application Scenarios and Costs

• Application Direction

Temporary residence: construction site dormitory, post-disaster emergency room, supporting batch deployment and rapid disassembly.

Cultural tourism and commerce: scenic B&B, mobile cafe, enhancing landscape interactivity through glass curtain wall or folding doors and windows.

• Price range

Basic model (single box, including water and electricity interface): ¥500-1100/㎡.

High-end customized model (integrated smart home, photovoltaic system): ¥3000-5000/㎡.

IV. maintenance and compliance requirements

Regular maintenance: hinges and slides are lubricated quarterly, and anti-rust coating is replenished every 2 years in coastal areas.

Fire code: fireproof coating needs to reach A1 level, the width of the escape channel ≥ 0.8 meters, the circuit needs to be protected by flame retardant pipes.

Comparative analysis of lightweight steel keel and wood keel in mobile homes:

Light steel keel: suitable for long-term use, high-risk environment of the mobile house, the advantages of high strength, low maintenance, high security.

Wooden keel: suitable for short-term, complex shape of the light mobile homes, need to strictly control the environmental humidity and maintenance frequency.

I. Material characteristics and performance

• Light steel keel

Material: continuous hot-dip galvanized steel plate cold-formed, thickness 1.2-2.0mm, with high strength and corrosion resistance, service life ≥ 50 years.

Fireproof and moisture-proof: the fireproof grade reaches A1, with excellent rust-proof performance, suitable for humid, salt spray and other harsh environments.

• Wooden keel

Material:

Processed from pine, fir, etc., plasticity, easy to bend to make complex shapes.

Environmental protection and defects: Natural wood is better for environmental protection, but it is easy to be deformed by moisture and insect,

so it needs to be painted regularly with fireproof coating and anti-insect treatment.

II. Structural Performance and Applicable Scenarios

• Light steel keel

Seismic and wind resistance: Seismic performance is up to grade 9, wind resistance grade ≥12, suitable for high-risk scenarios such as earthquake zones and coastal typhoon zones.

Application Scenario: Workwear, temporary dormitory, emergency room in disaster area and other movable houses that need long-term stability.

• Wooden keel

Flexibility and limitations: fast construction speed, suitable for small area half-hanging modeling or curved surface design, but poor durability, need to avoid high humidity environment.

Applicable scenarios: short-term cultural and tourism lodging, temporary exhibition halls and other projects with high requirements for modeling but short use cycles.

III. Construction and maintenance cost

• Light steel keel

Difficulty of construction: professional tools and installation techniques are required, and the construction cycle is long, but the precision is high and the structure is solid.

Maintenance cost: basically no maintenance, coastal areas are recommended to check the anti-rust coating every 2 years.

• Wooden keel

Convenience of construction: flexible in cutting and splicing, suitable for quick installation, but requires regular moisture-proof and insect-proof treatment.

Comprehensive cost: low initial material cost (about ¥80-150/㎡), but higher maintenance cost, and weaker long-term cost performance than light steel keel.

IV. Compliance and safety

Fire standards: light steel keel is naturally fireproof and meets the A1 level fireproofing requirements for movable houses; wooden keel requires additional fireproof coating and is a fire hazard.

Structural safety: light steel keel is not easy to crack at the joints and has stable seismic performance; wooden keel is easy to be deformed by moisture, which may cause structural loosening.
